Phoenix Court Apartments

James Hardie siding over a ventilated rainscreen — Redmond, Washington.

Free Estimate

Est. 1995

Family-Owned

BBB

Accredited Business

Licensed

& Fully Insured

James Hardie

Elite Preferred Contractor

300+

5-Star Reviews

James Hardie siding in Redmond, installed over a ventilated rainscreen. Side-Pro rebuilt the exterior building envelope on this multi-family community — housewrap, flashing, rainscreen furring and cladding.

What matters here is what sits behind the siding. Treated wood furring holds the cladding off the wall to form a drained, vented cavity, screened top and bottom against insects. Water that gets past the cladding has somewhere to go and a path to dry — in this climate that is the difference between a wall that lasts and one that holds moisture against the structure.

Project at a Glance

Property

Redmond Park, Redmond, WA

Type

Multi-family residential community

Scope

Exterior building envelope and siding

Assembly

Ventilated rainscreen behind James Hardie cladding

Systems and Materials

James Hardie siding and trim. HardiePlank® lap siding, smooth HardiePanel® vertical siding, Rustic Hardie® trim, and Hardie® mounting blocks for lights, receptacles and utilities.

Ventilated rainscreen. Treated wood furring holds the cladding off the wall to form a drained and vented cavity, with aluminium vent screen at the openings for insect and debris protection.

Weather-resistive barrier. Typar® HouseWrap with matching seam tape, lapped and taped so the drainage plane runs continuously behind the rainscreen.

Window flashing. FortiFlash® self-adhered flashing at the openings, detailed into the housewrap rather than run over the top of it.

Architectural flashing. EasyTrim Reveals, custom-formed metal flashing, sloped Z-flashing at horizontal joints, panel corner flashing, and saddle flashing at the stem-wall transitions.

Ventilation. Soffit ventilation and hooded HVAC vents, with each penetration flashed and sealed back into the barrier.

Sealants. OSI® QUAD® exterior sealant at joints, penetrations and terminations.

Choosing a cladding for a project like this one? Our comparison of Hardie siding versus LP SmartSide covers how the two behave in this climate.

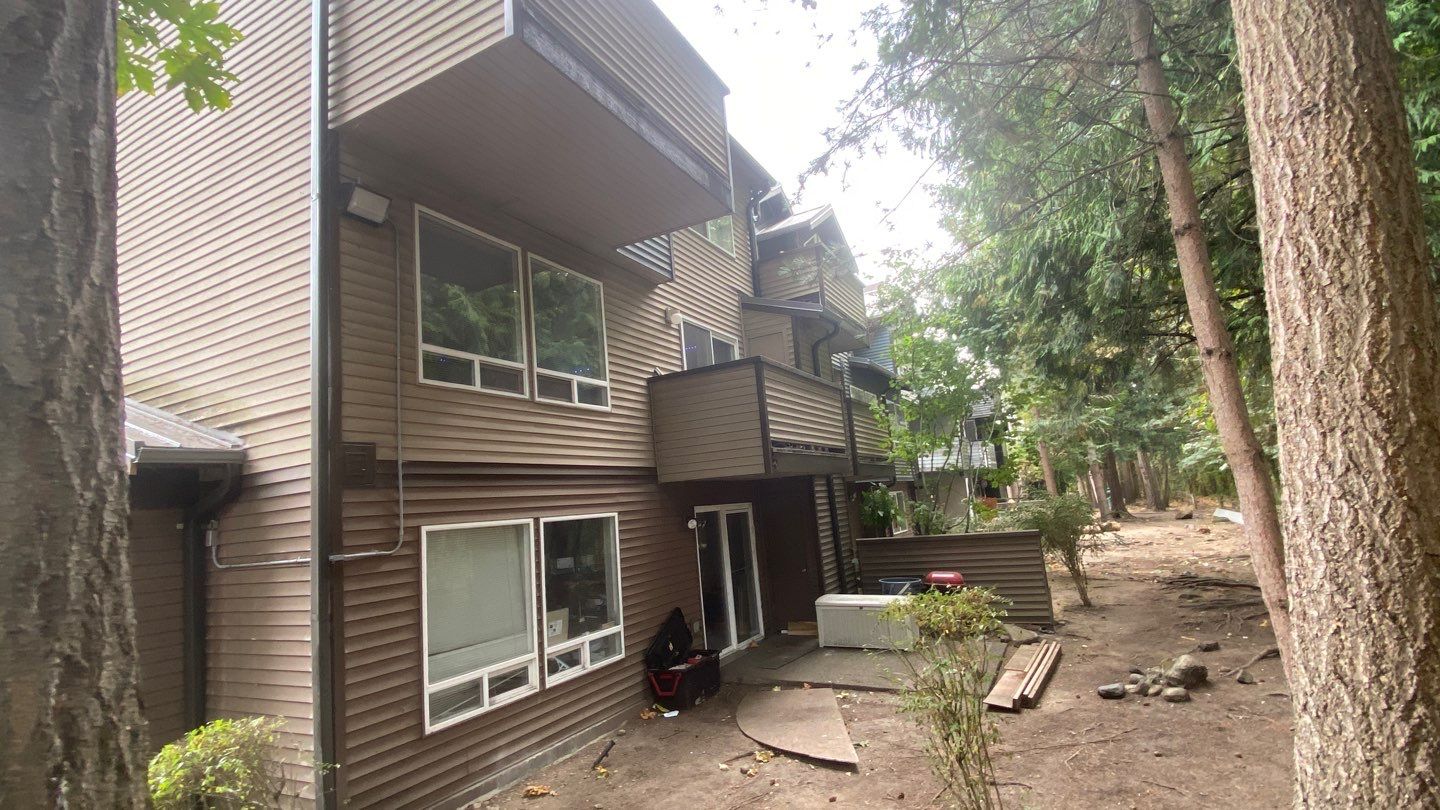

Before

The original cladding

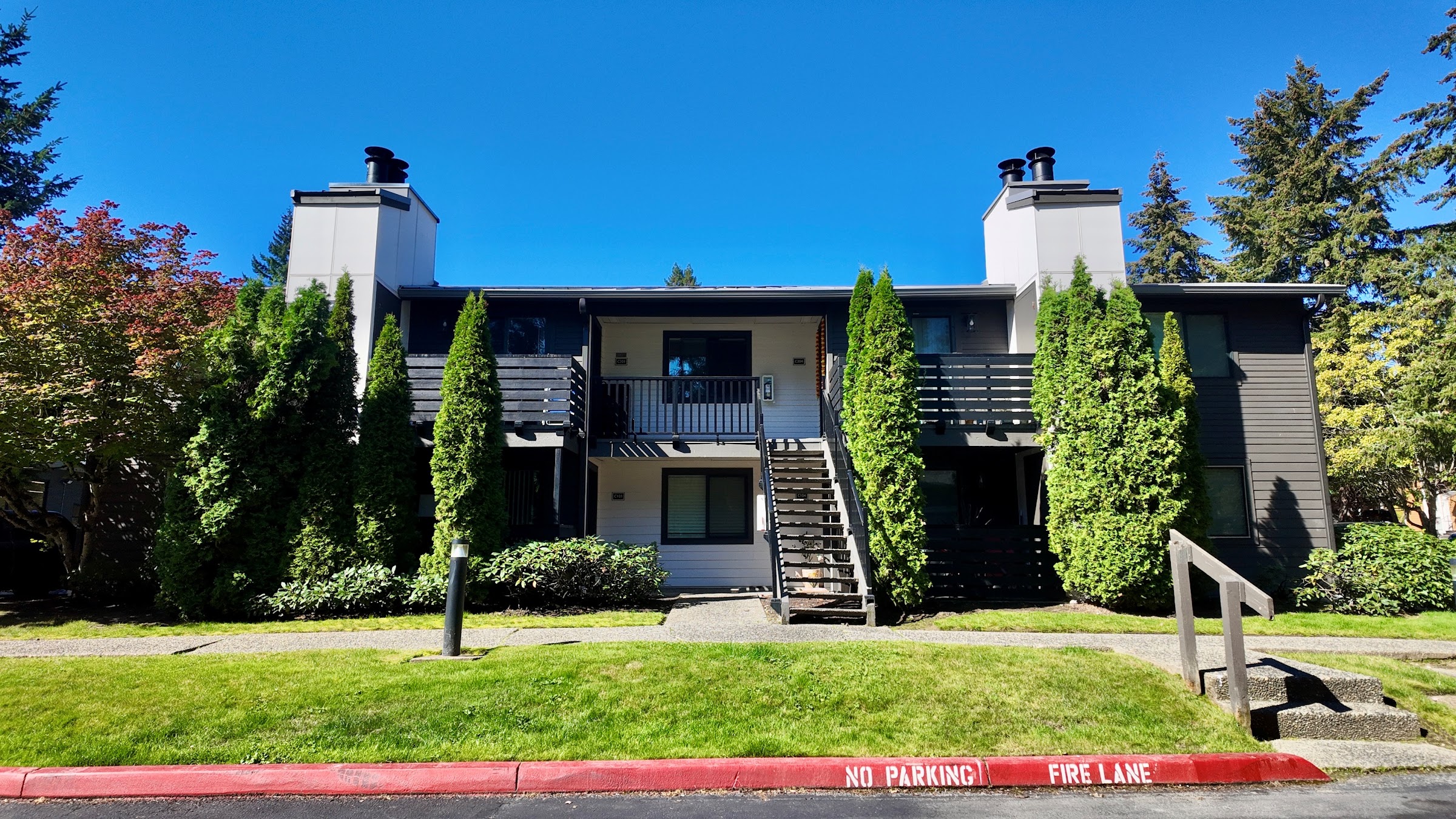

After

After Side-Pro’s work

Project Gallery

Before

The original cladding and trim as we found it.

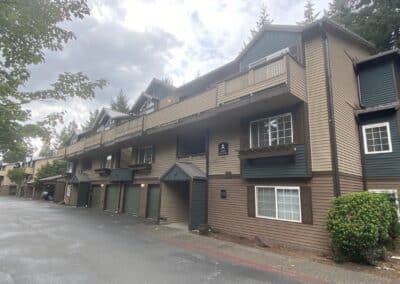

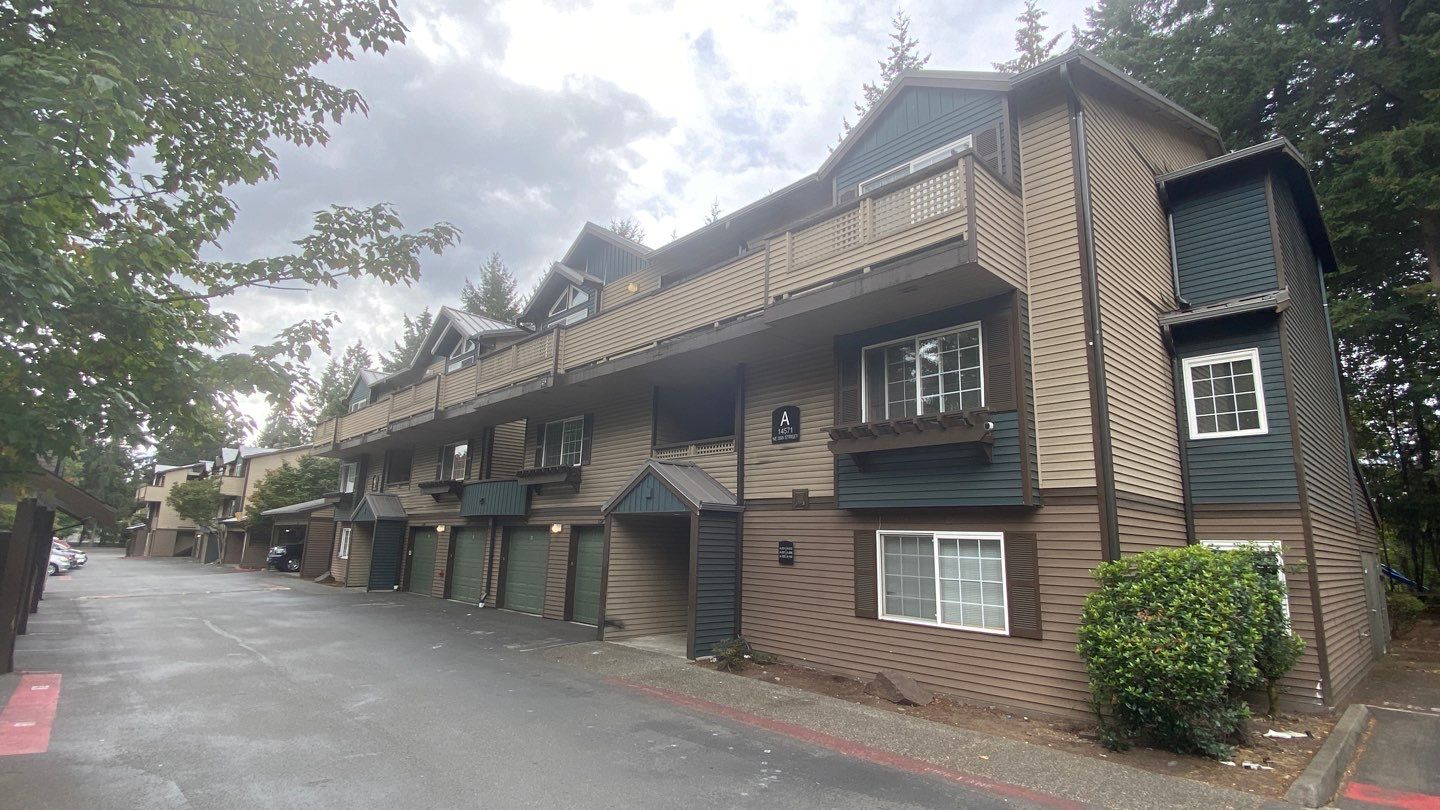

Street elevation before

The original cladding along the street elevation

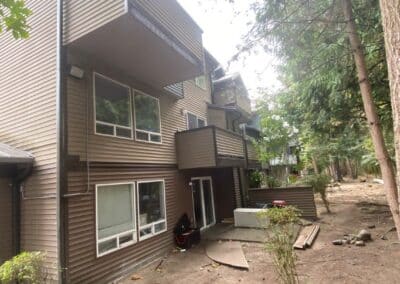

Original siding and balconies on the courtyard side at Redmond Park.

Courtyard side before

Original siding and balconies on the courtyard elevation

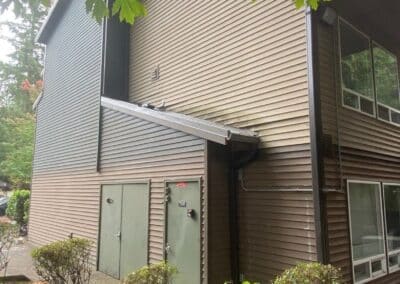

Original cladding

The siding Side-Pro removed

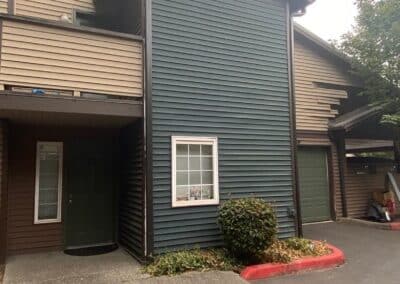

The original entry elevation at Redmond Park before the re-side.

Entry elevation before

The original entry elevation before the work

During

Cladding off, housewrap and flashing on, and the rainscreen furring set out.

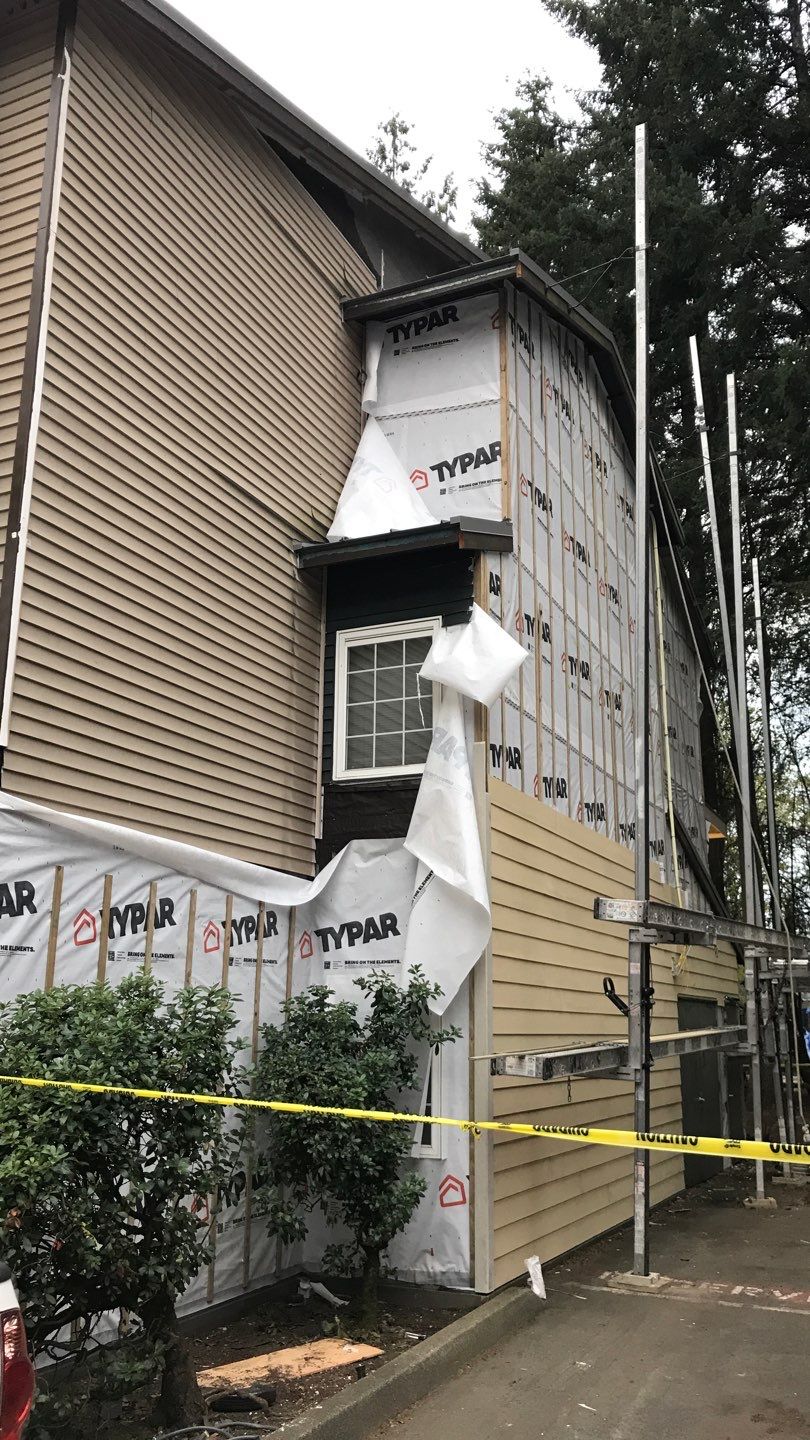

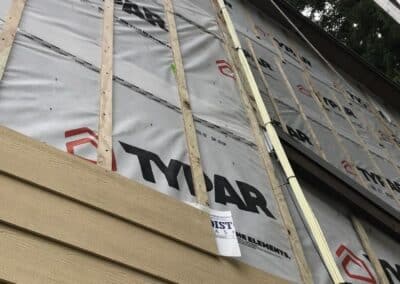

A wall part-stripped of its original cladding at Redmond Park.

Cladding coming off

The wall part-stripped, with new work starting above

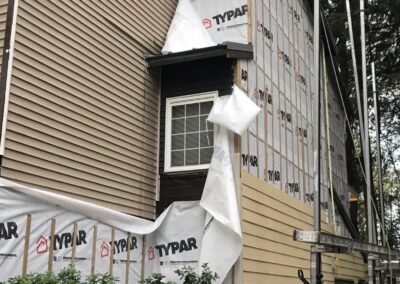

An elevation under way during the re-side at Redmond Park.

Work in progress

Scaffolded elevation during the re-side

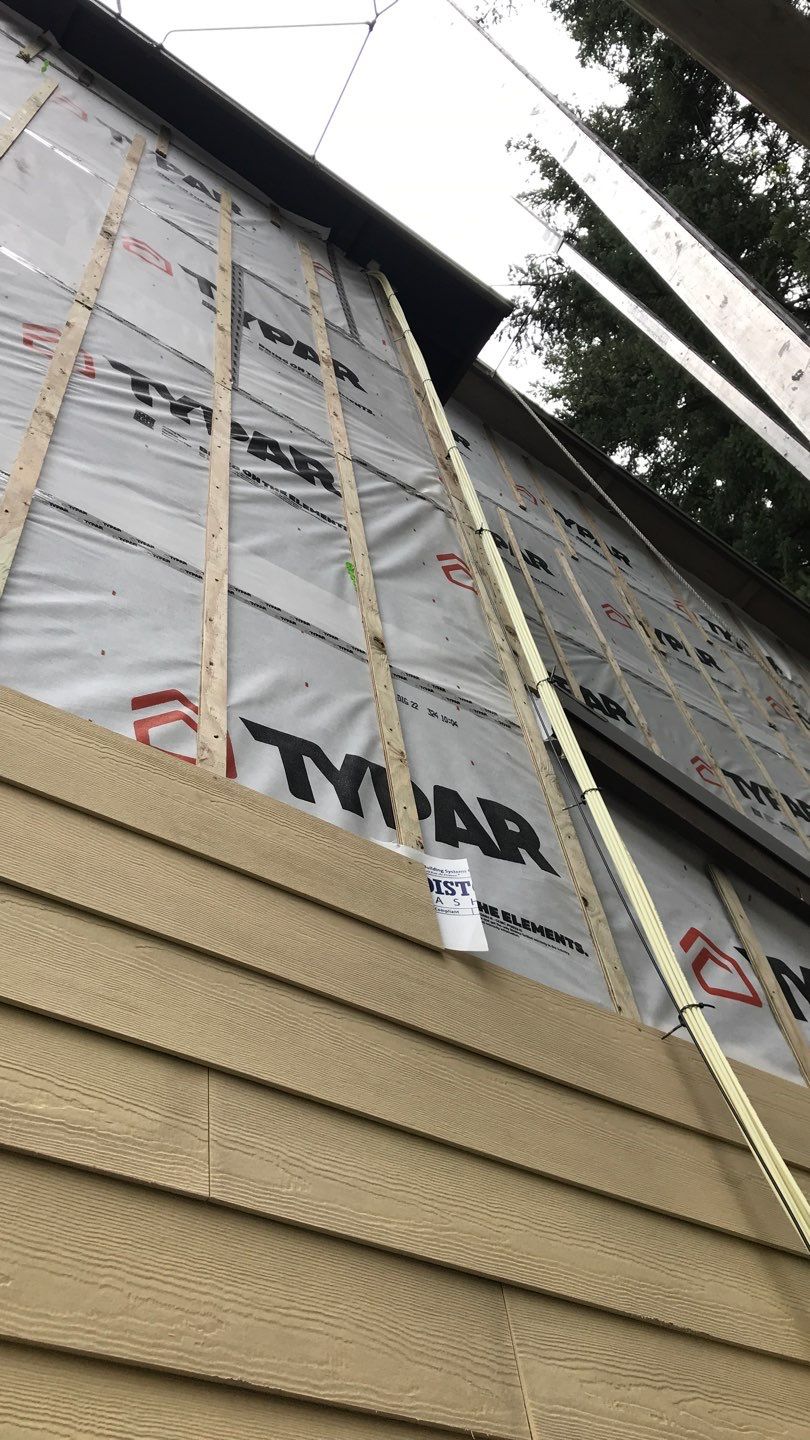

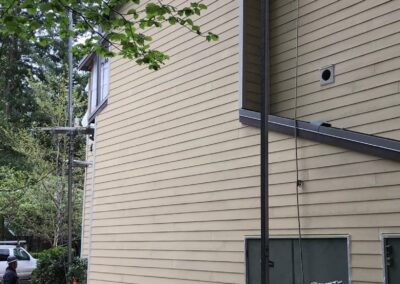

James Hardie siding being installed over the rainscreen at Redmond Park.

New cladding going on

James Hardie siding going up over the rainscreen

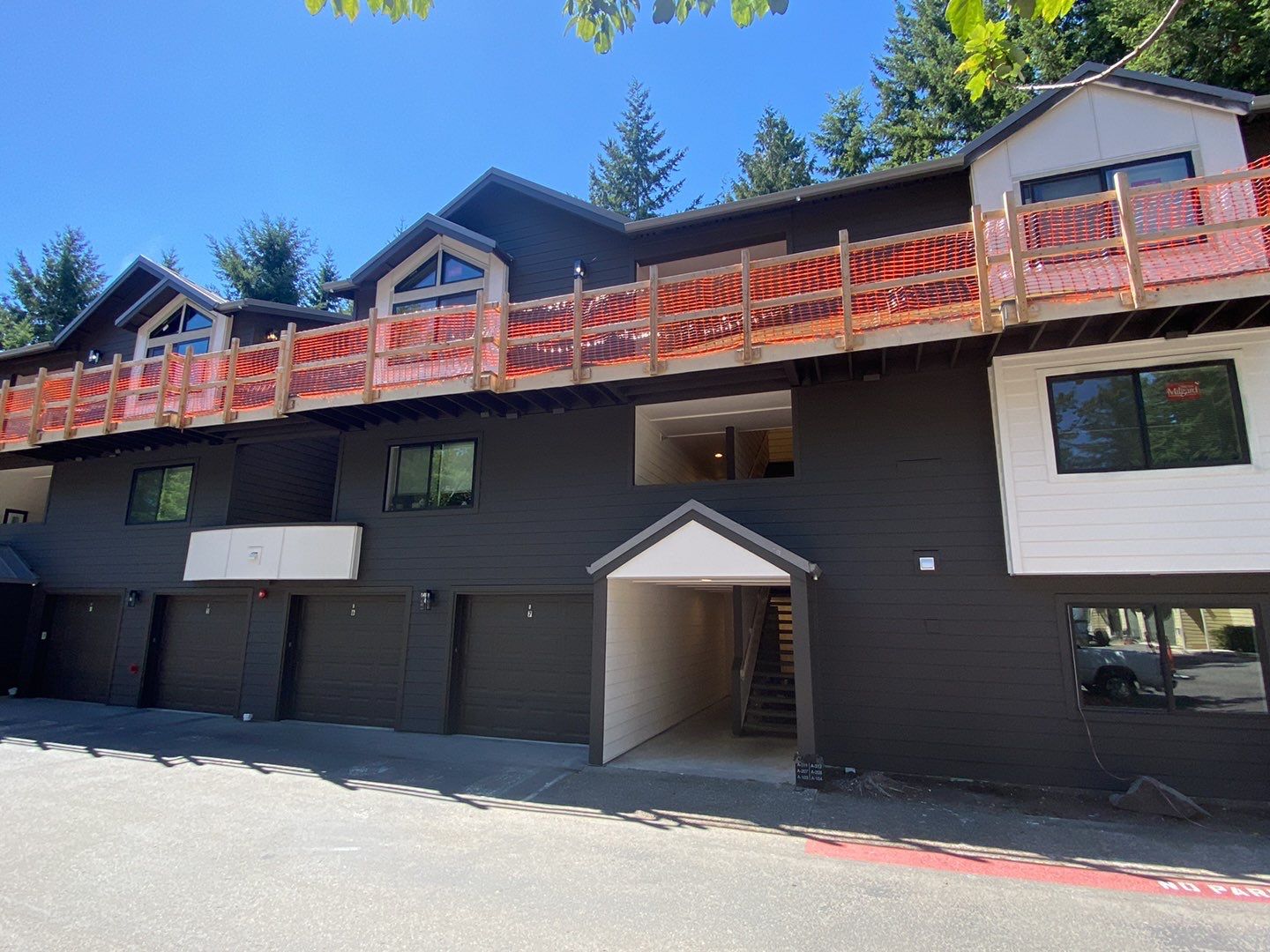

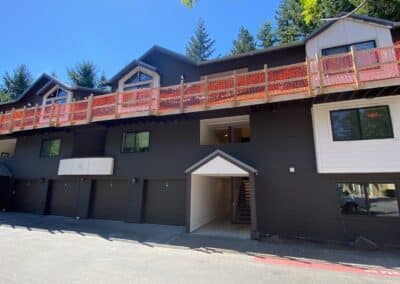

Nearing completion

New cladding and balcony rails in place

After

The finished elevations — siding, trim and flashing.

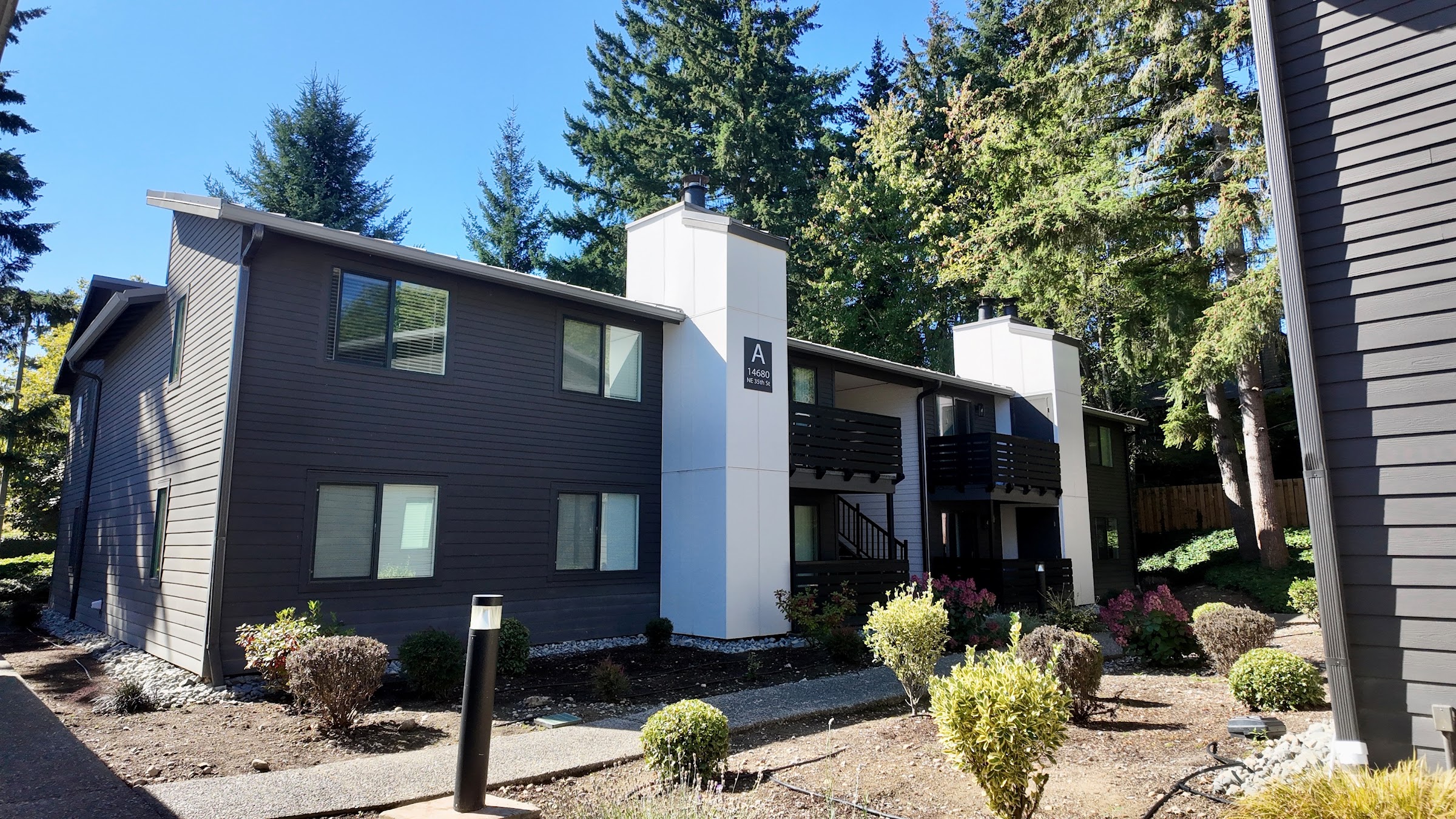

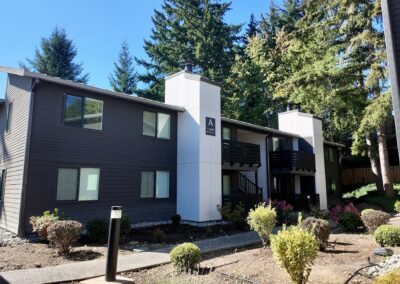

Completed HardiePlank lap siding and trim at Redmond Park.

Completed elevation

HardiePlank lap siding, trim and flashing after completion

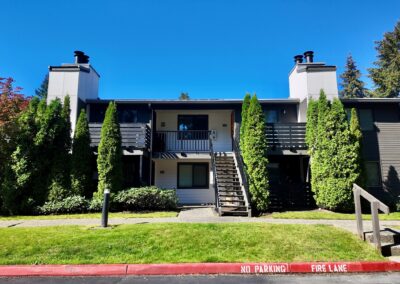

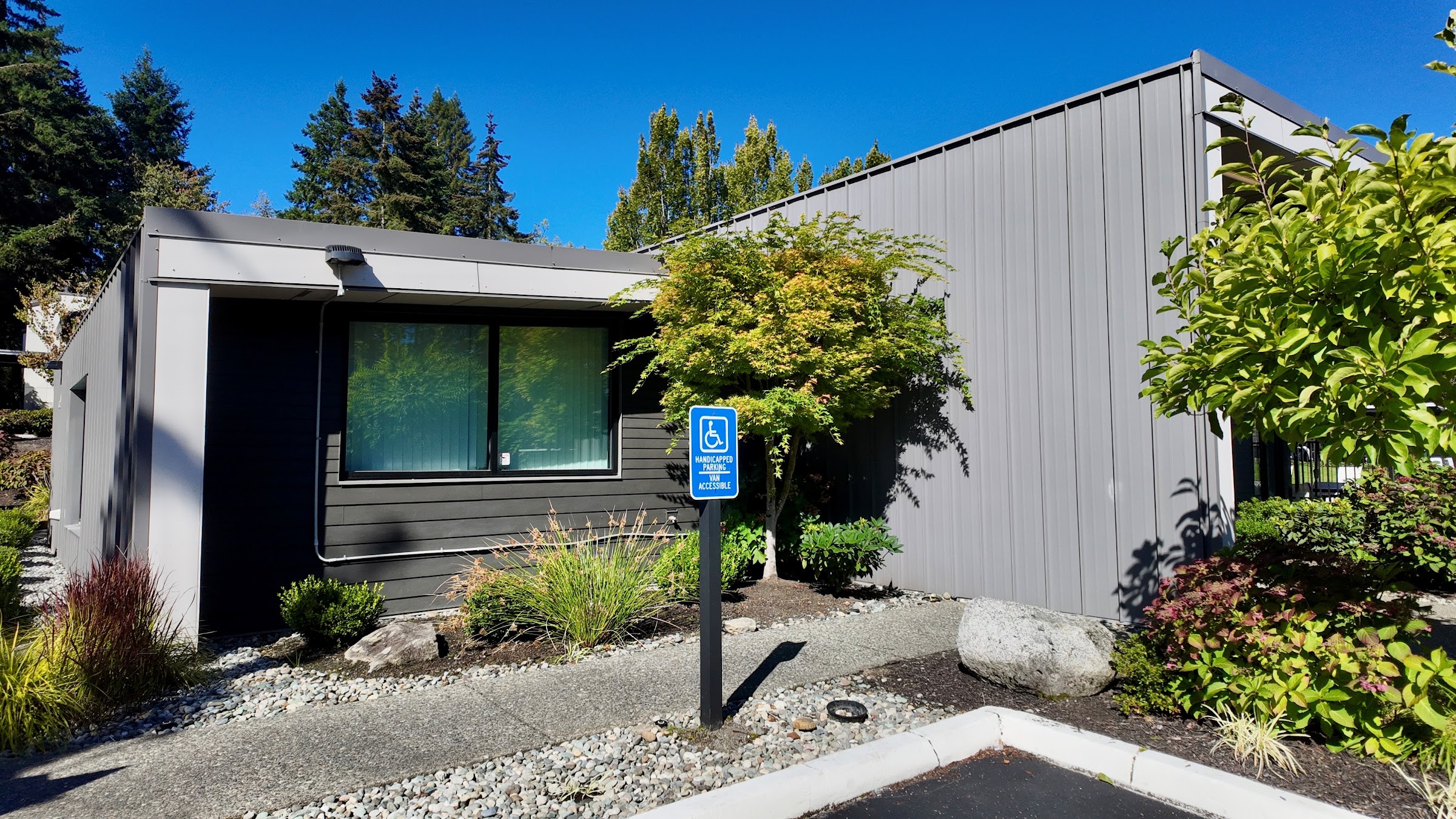

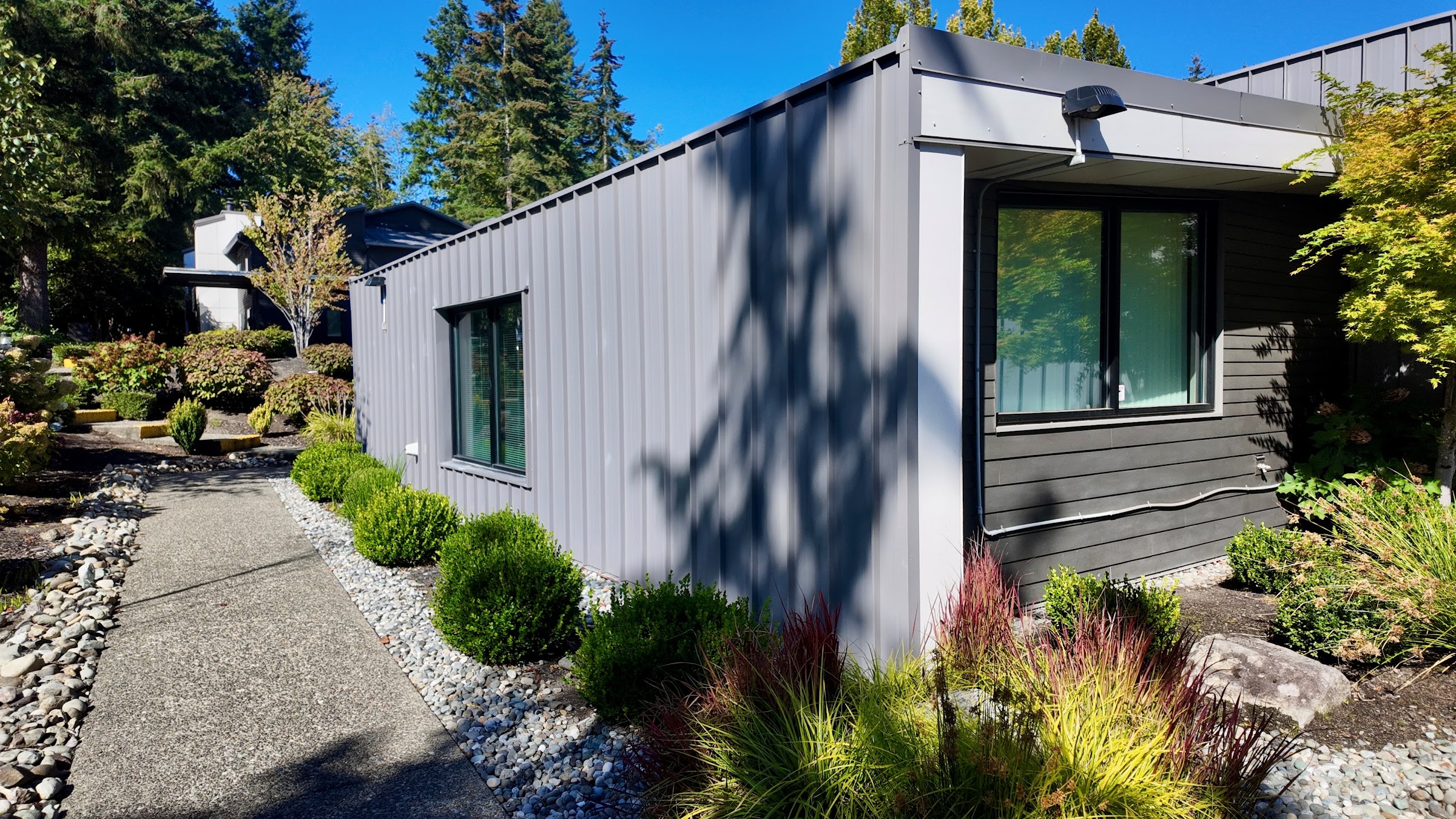

HardiePlank lap siding and smooth HardiePanel vertical siding at Redmond Park.

Lap and panel siding

HardiePlank lap siding alongside smooth HardiePanel vertical siding

Custom metal flashing and EasyTrim Reveals on the completed exterior at Redmond Park.

Flashing and trim detail

Custom metal flashing and EasyTrim Reveals on the finished wall

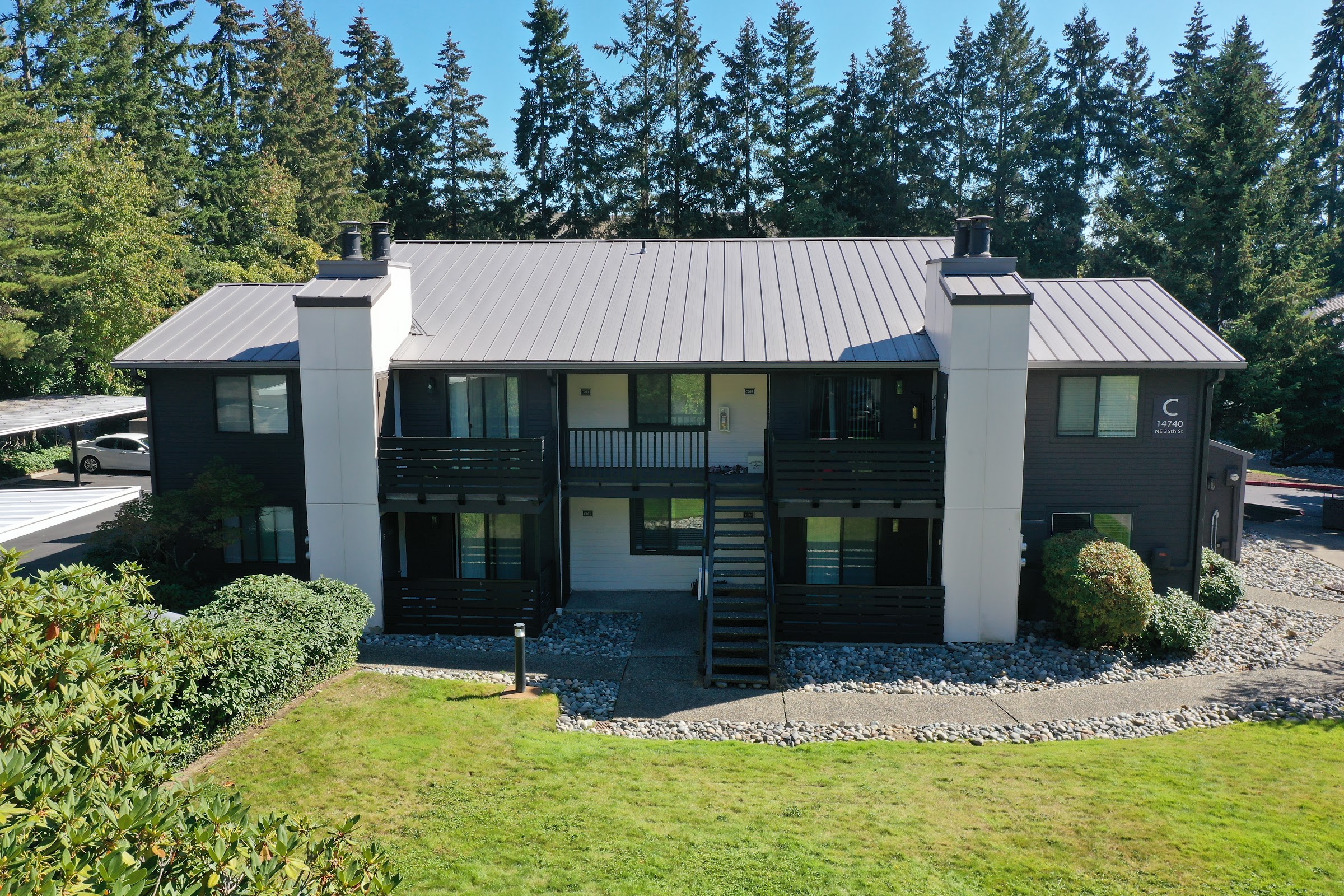

Completed siding and balconies at Redmond Park, Redmond WA.

Balcony elevation

Completed siding, trim and balconies

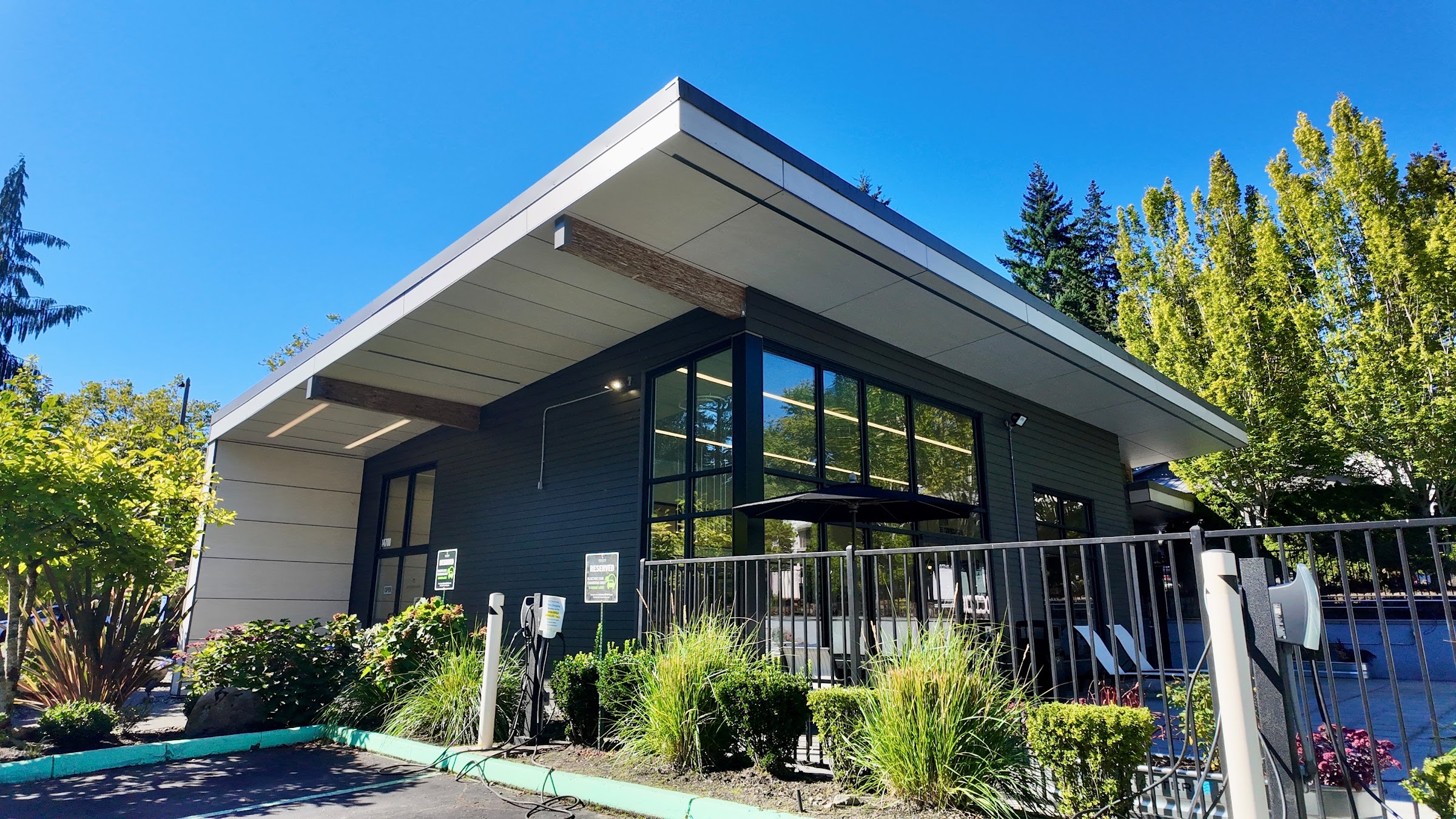

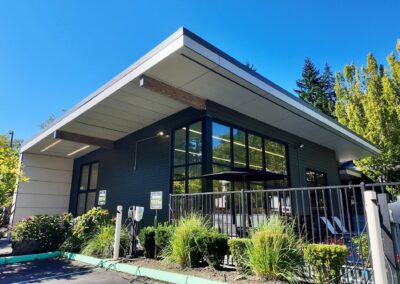

Finished gable elevation and glazing at Redmond Park, Redmond WA.

Gable and glazing

The finished gable elevation and glazing

From the air

Drone photography over the completed buildings.

Aerial view of the completed James Hardie re-side at Redmond Park, Redmond WA.

Redmond Park from the air

The completed buildings seen from above

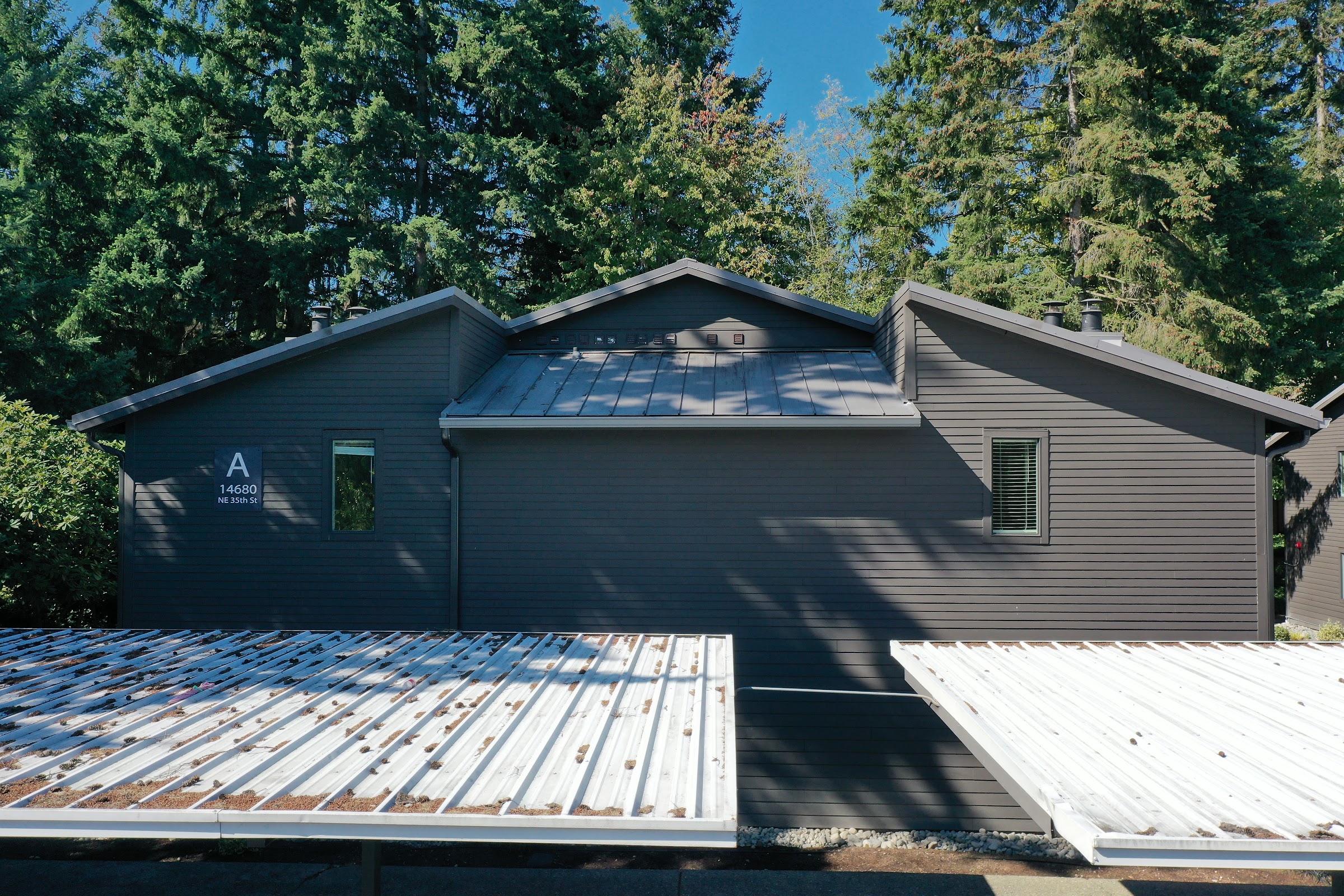

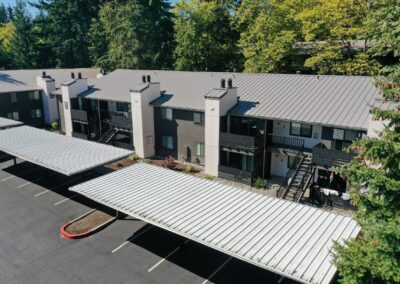

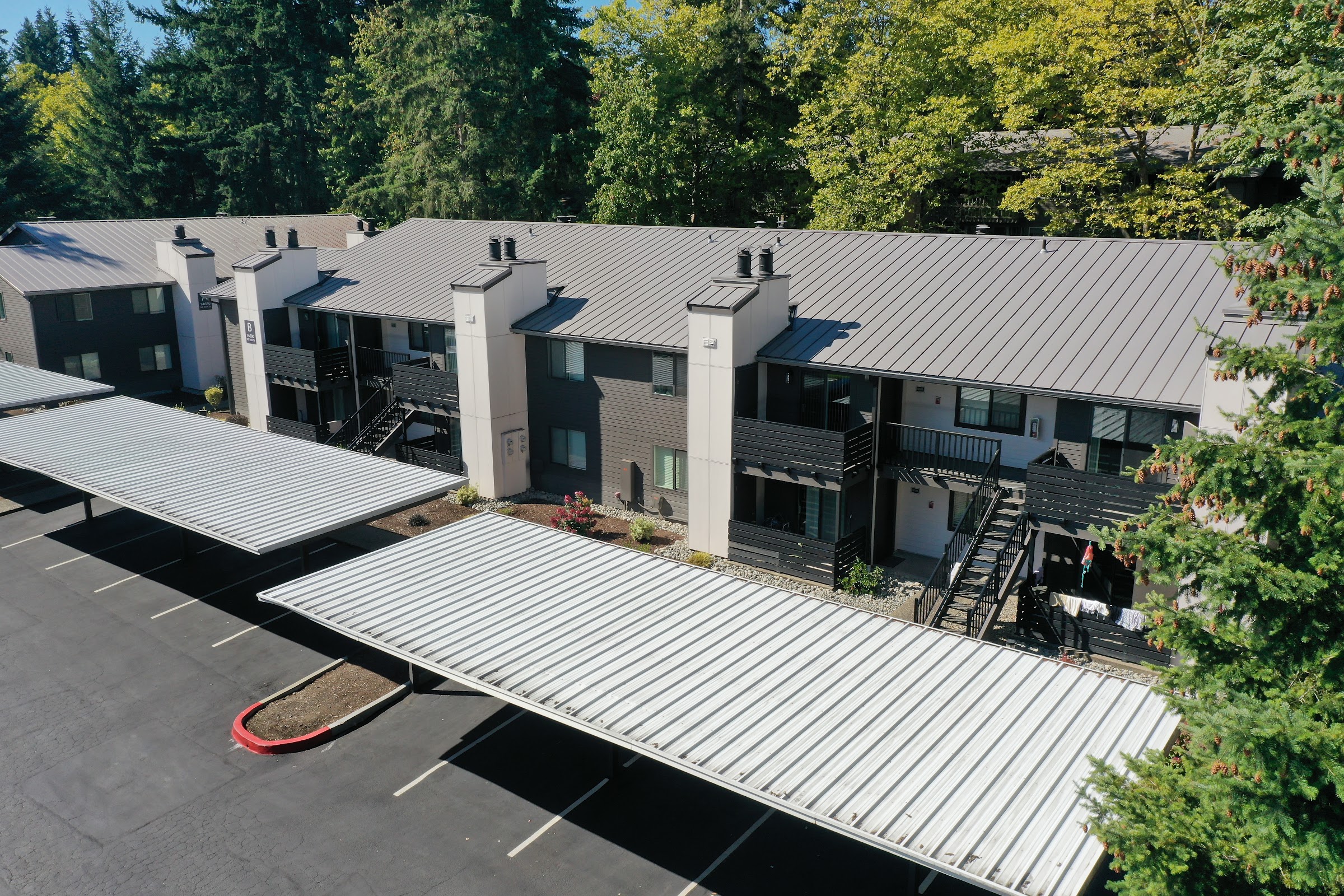

Aerial view of the finished siding and rooflines at Redmond Park.

Aerial elevation

Finished siding and rooflines from above

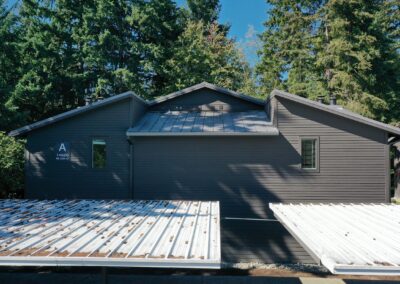

Aerial view over the rooflines and completed exterior at Redmond Park.

Roofline aerial

Rooflines and completed exterior from above
